Holding true to our level of performance and quality the APH50D delivers massive amounts of illumination on long-range targets. Designed for border patrol, search & rescue, and military operations, the APH50D can project its primary beam over 3,000 feet with ample peripheral illumination on your target.

Featuring dual function electronic ballast, the low beam produces 3200 lumens with a run time of 220 minutes. On high beam, the light produces 5300 lumens for 90 minutes.

The light head is precision CNC machined from 6061 aerospace aluminum, Mil-A-8625 hard-anodized Matt Black and the reflector is electroformed for maximum beam transfer. The design of the light head and reflector ensures the beam is never out of focus.

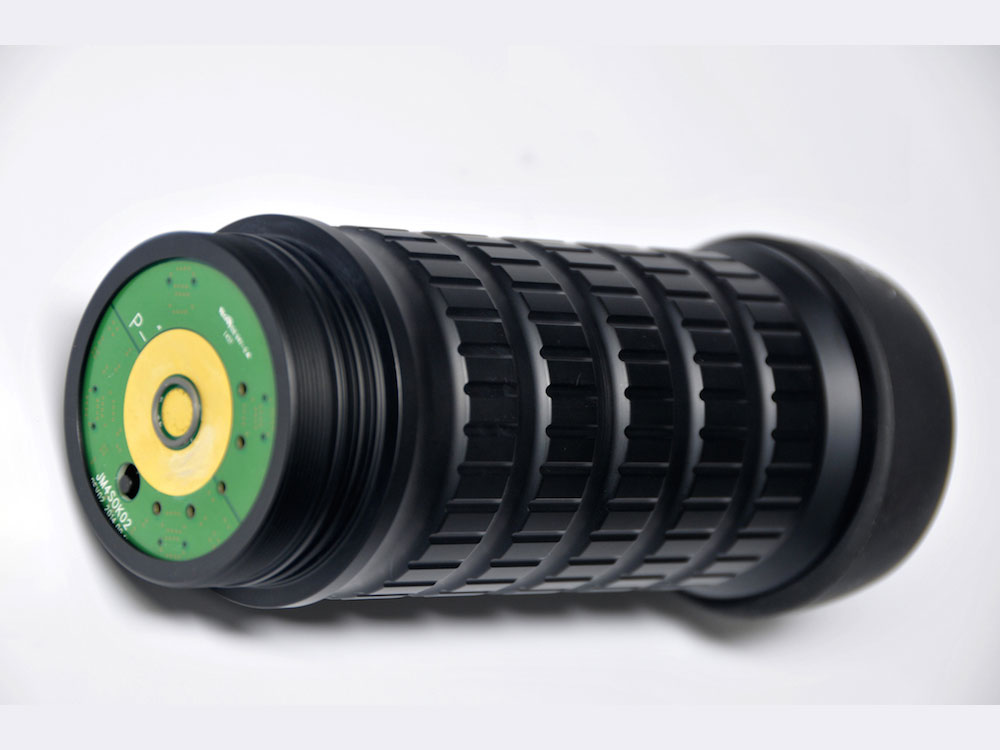

The lithium-ion rechargeable battery is potted in the same aerospace aluminum housing. A protective circuit controls battery charge to ensure proper charging and protect against over/undercharge condition.

Designed with professional users in mind, no detail has been compromised. Water pressure tested to 50 meters, the APH50D can double as a powerful dive light.


SKU: AEX35/50 Category: Tag:
HID Searchlight 35/50W APH50D:

The bottom of the light grip is fitted with brass countersunk inserts to fit standard tripods. The ABS plastic handgrip is long enough so it can be hung by belt, vest, moly strap, or carry packs.

The magnetic on/off switch easily controls activation of both high and low modes. Rotating the switch just behind the light head counter-clockwise activates the 2800 lumen low mode. Turning the switch clockwise activates the 4500-lumen high mode. Rotating the switch opposite the direction turns the light off, continuing in that direction activates the other mode.

Hid Searchlight 35/50W APH50D Technical Data:

  • Lamp Power: HID 30W / 50W
  • Battery: Li-ion Rechargeable
  • Battery Output: 14.8VDC / 5200mAh
  • Battery Life: 1000 ~ (70%) Cycles
  • Continuous operation (high capacity: 120± min (35W) / 80± min (50W)
  • Luminous Flux: 35W – 2800 lumen / 50W – 4500 lumen ±200 lumens
  • Color temperature: 4300K
  • Lamp: D2S style / 2500 hour
  • Input Voltage: 10 – 18VDC / 6.8A Max.
  • Lighting Distance: Up to 1.5km / 4,900′
  • Charge Voltage: 19.0V DC ± 25mV
  • Batt. charge time 2hrs 30min ±30min
  • Battery Weight: 470g ±5% (1lb ±5%)
  • Charge Temperature:  0 – 45°C
  • Discharge Temperature: -20°C to + 60°C
  • Operating temp.: -20°C to 60°C
  • Light total Weight: 1.4kg / 3lb ±5%
  • Length: 317.5 mm / 12.5 in
  • Tripod mounting: 2 standard tripod screws
  • Handle – ABS plastic ergonomic grip
  • Lens – high resistant scratchproof, temperature shock proof glass
  • Waterproof: 50m / 164ft. IP68
  • On/Off switch: magnetic rotary – left 35W, right 50W
  • Charger: 110-240VAC 50/60Hz
  • Bulb replacement: 3 minutes
  • Searchlight Body:
  • Corrosion Resistant AL6061 (Type III Hard anodize)

The standard package includes:

  • APH50D searchlight with high capacity  battery (Li-Ion) – no memory effect
  • Handle with tripod threads
  • Charger: 100-240V/50-60Hz
  • Rugged waterproof plastic case

Optional accessories:

  • Spare high capacity (HC) battery
  • Filters (IR, yellow, red, green, diffuser lens)
  • Spare bulb

Law Enforcement and Military discounts offered

The Hid Searchlight APH50D is special order only.

Searchlights: High power, lightweight and portable. Designed for law enforcement, search and rescue, border patrol, military & industrial users to light targets that flashlights cannot illuminate.

We have HID portable Searchlights and LED Remote Control Searchlights with controllable focus beam.

These searchlights are widely used by professionals in need of lighting targets that regular high power flashlights can not reach. They are compact and illuminate large areas making it easier to illuminate targets from long distances.

The intense beams of the APH50D and the LED Searchlights are good for self-defense as well as personal security. The HID searchlights are powered by a rechargeable lithium-ion battery.

Five HID & 3 LED models to choose from:

AEX20 – 20W, 1200+ lumen professional pack
AEX25 – 25W, 1500+ lumen professional pack
APH50D – 35/50W, 3200/4700+ lumen professional pack
AESL1840W 40W, 4200 Lumen AESL3680W 80W, 7400 Lumen AESL3680W-S 80W, 10,000+ Lumen

See for yourself how powerful these HID searchlights really are. Order yours online now. If you are involved with law enforcement, military, or other government agencies call for special pricing.

Additional information

Weight 14 lbs
Dimensions 16 × 8 × 14 in
