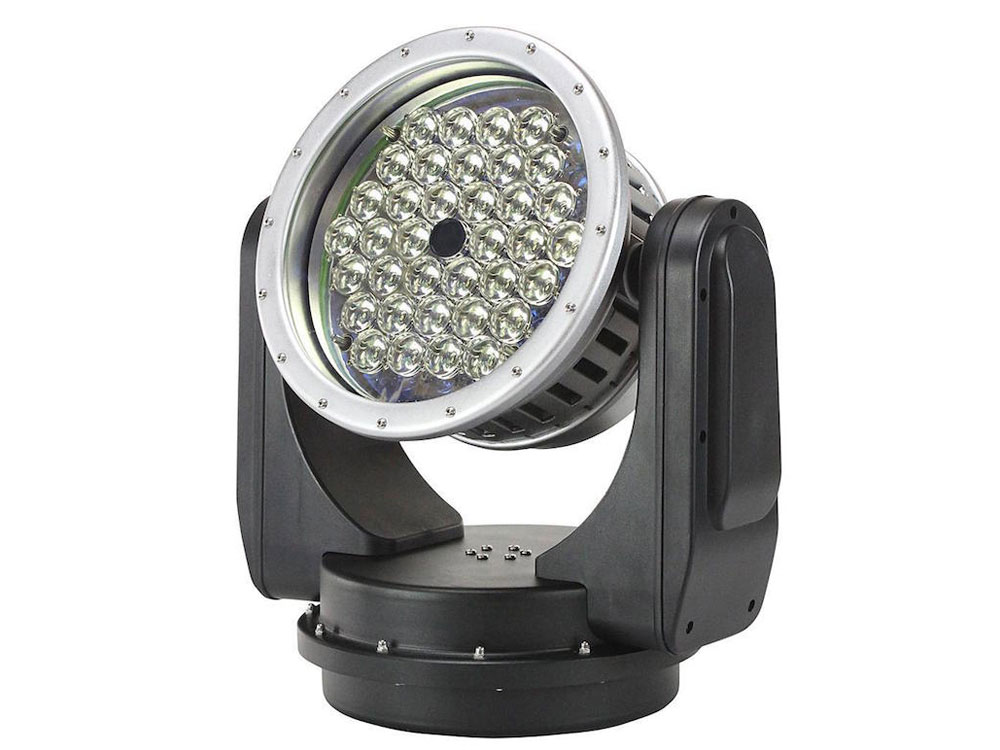

LED 80W Remote Control SEARCHLIGHT

High Power LED 80W Remote Control Searchlight. Light your targets thousands of feet away in all directions with a simple press of a button. Spot beam for longer distances, flood beam for wider areas. Even beam with no dark spot. High/Medium/Low settings with SOS and Strobe modes.

Painted aluminum housing, sealed metal gears, Patent Pending Optical Lenses, hard plastic lens cover. Standard remote control distance of 328′ (optional 1312′ available).

This is the only Remote Control Searchlight that has rotation, tilt and focuses beam all controlled by a push of the button. Ideal for a fixed location, yachts, helicopters, tractors, security lighting, and anywhere that light is needed to be controlled from a distance. Due to size and weight, this light must be mounted for permanent installation. Portable batteries can be used but a stable mount must be provided.


SKU: 70625-AESL3680W24-T Categories: ,
Led 80W Remote Control Searchlight Specifications
  • Remote Control LED Searchlight
  • 36 LED 80W
  • 7400 lm
  • Farthest beam throw (6° Spot Beam) 3936′
  • Adjustable beam: 6° – 30° (Remote control)
  • Rotation: 0° to 343° at 30°/sec. (Tilting the light while rotating will achieve a full 360°) (Remote control)
  • Tilt: -15° to +195° (Remote control)
  • IPX6
  • Remote Control distance Standard: 328′
  • Remote Control distance (Optional): 1312′
  • LED: German Osram
  • Dimensions 255mm tall X 236mm wide (complete light with turnstile base), Base width 163mm, Light head depth 130mm
  • Weight: 26 lbs.

Maximum Light Intensity vs Distances AESL3680W

Distance / Beam Diameter 90M / 99’ 50M  / 164’ 100M / 328’ 500M / 1640’
822 lux / 5.2′ 298 lux / 8.6′ 74 lux / 17.2′ 3 lux / 85.9′
30° 38 lux / 26.5′ 13.5 lux / 43.9′ 3.3 lux / 87.9′ 0.13 lux / 439.4′
  • Input: 24VDC, Optional 120/220VAC Adapter. Higher current 12VDC input and is not recommended.
  • Recharge time: 10h (DC only)
  • Figures below based on using a 24V 26AH rechargeable battery.  NOTE: Battery is not attached to the light and is mounted separately. Light is designed for hard wire applications. The information below is for reference purposes only.
Use time full charge Continuous Strobe / SOS
Maximum (100% current) 15h 30h
Medium (50% current) 30h 60h
Regular (25% current) 60h 120h

Box Shipping Dimensions and weight: 20 X 16 X 22 – Weight: 50 Lbs.

Searchlights: High power, lightweight and portable. Designed for law enforcement, search and rescue, border patrol, military & industrial users to light targets that flashlights cannot illuminate.

These searchlights are widely used by professionals in need of lighting targets that regular high power flashlights can not reach. They are compact and illuminate large areas making it easier to illuminate targets from long distances.

The intense beams of the LED Searchlights are good for self-defense as well as personal security. The searchlights are powered by a 24VDC power.

Four  LED models to choose from:

AESL1422W 14W 1926 Lumen
AESL1840W 40W, 4200 Lumen

AESL3680W 80W, 7400 Lumen

AESL3680W-S 80W, 10,000+ Lumen (Special Order only)

See for yourself how powerful these LED searchlights really are. Order yours online now. If you are involved with law enforcement, military, or other government agencies call for special pricing.


Additional information

Weight 41 lbs
Dimensions 20 × 16 × 22 in

No Additional Accessories, 120/220VAC – 24VDC Power Adapter, AEX Power Cord 12VDC Cigarette Plug
