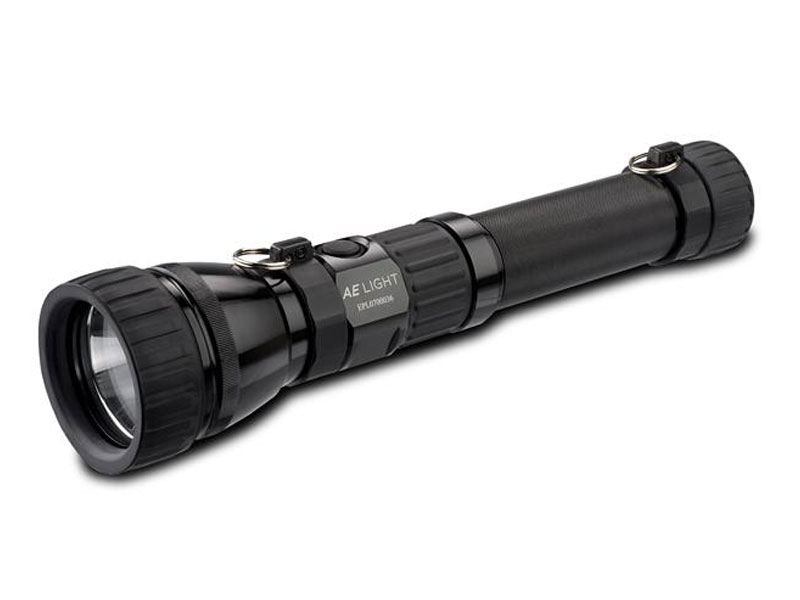

Xenide: 25W HID Explosion Proof Class 1 Division 2 Hazardous Location™

$525.00

-

Commonly referred to as 25W HID Explosion Proof Lights, Intrinsically Safe, & Hazardous Location portable lighting, the Xenide AEX25-EP has been tested to the performance procedures contained in the UL 783, for use in Hazardous (Classified) locations” Class 1, Division 2, Groups A, B, C, & D and Class 1, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F & G; and Class II, Division 2, Groups F & G, as defined in the National Electric Code, NFPA 70, to cover lights intended for use in Hazardous locations.

Based on the results of the tests it has been concluded that the AEX25-EP meets the intent of the standard for satisfactory operation in an explosive environment and would not cause ignition of an explosive atmosphere during normal operation.

Applications include Petro/chemical facilities, holding tanks, natural gas companies, aircraft repair & maintenance facilities, food processing plants, and numerous industrial plants. Maintenance facilities us the AEX20-EP to illuminate fluoresce substances with the use of the UV lamp and UV filters and CSI use it for crime scenes due to its high illumination and penetrating effect of the UV rays.

Further independent laboratory testing for the Xenide batteries was conducted for Section 38.3, Lithium Batteries UN SG/AC.10/11 Rev. 4 Recommendations on the Transport of Dangerous Goods Manual for tests and Criteria Fourth revised edition.

SKU: AEX25-EP Category: Tag:

Description

25W HID Explosion Proof Lights Specifications:
  • Color Temperature: 6500K±
  • Run time: 130 minutes
  • Length: 13.5 in., 343 mm
  • Weight: 32oz., 907 gm
  • Light head: 3 in., 76.2 mm
  • Handgrip: 1.5 in., 38 mm
  • Power Supply: Rechargeable 4800mAh waterproof Lithium Ion,
  • Power Switch: Push-button on/off
  • Beam: 12deg. fixed
  • Lumens: 1500+-
  • Rating: IP68 (Totally protected against dust and protected against long periods of immersion under pressure).
  • Light body: Black hard-anodized aircraft-grade aluminum
  • Chargers: 100/240VAC 50/60Hz, Optional DC 12-24VDC w/overcharge protection, LED indicator

Safety Rating: Class 1, Division 2, Groups A-F (all gases and dust except grain) T4A, possible explosive environments to UL 783 standard.

Light set includes*: Light head, 4800mAh waterproof power pack, AC charger, charger stand, lens and end cap protectors, lens cloth, black plastic molded travel/storage case *(filters, spare battery & DC charger not included).

Optional accessories for 25W HID Explosion Proof Lights: See accessories Section for details

Summary of Class 1, 11, 111 Hazardous Locations

Classes

Groups

Divison1

Division 2

1 Gases, vapors and liquids A: Acetylene

B: Hydrogen, etc.

C: Ether, etc.

D: Hydrocarbons, fuels, solvents, etc.

Normally explosive and hazardous Not normally present in an explosive concentration (but may accidentally exist)
11 Dusts E: Metal dusts (conductive and all explosive)

F: Carbon dusts (some are conductive, and all are explosive)

G: Flour, starch, grain, combustible plastic or chemical dust (explosive)

Ignitable quantities of dust normally are or may be in suspension or conductive dust may be present Dust not normally suspended in an ignitable concentration (but may accidentally exist). Dust layers are present.
111 Fibers and flyings Textiles, wood-working, etc. (easily ignitable, but not likely to be explosive) Handled or used in manufacturing Stored or handled in storage (exclusive of manufacturing)



Hazardous Location Lights: This category features HID Handheld Lights. These lights are used in areas where petrochemical or dust particles have the potential to exist and the possibility of ignition is possible. Explosion proof lighting is rated Class 1, Division 1/2 or Class 2, Division 1/2 as specified by UL standards. These areas include offshore lights, rig lights, spray booths, cleaning vessels, fuel cells, plant turn around, marine work areas, grain storage, dust, or munitions.

The Xenide AEX25-EP HID searchlight is rated for Class 1, Division 2 applications. and is a powerful hid spotlight that can be used in a variety of industrial applications such as inspection lighting, industrial UV inspection light, and leak detection.

Additional information

Weight 7 lbs
Dimensions 16 × 14 × 5 in
