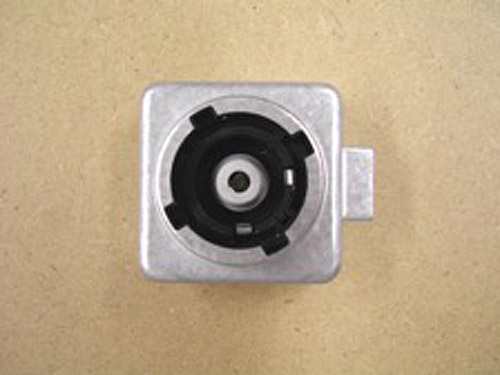

Electronic starter to start discharge lamps General Electric XENSATION D2x, Osram D2x, HTI S 35/xx, XL-2, BL-2, intended for our electronic power supplies EB050Gx1, EB050Sx1, EB070G21 & EB02870. It is suitable for D1 ballast products of Philips and Osram.

Other lamp types and ballasts on request.

Contact Us For Special Pricing

SKU: IG050DXE Category:

Description

Technical Specifications*:

  • Starter Type: Series pulse starter with asymmetrical HV output
  • Starter Input J1 (A): 4 way, AS-GT15HD plug or compatible D1 automotive
    • J1 – AC input A (RD)
    • J2 – AC input B (WS)
    • J4 – Trigger voltage > 550 V+ (GN)
  • HV Output Voltage, UIG: Min. 21 kV, typically 24 kV ≤ 20 pF load
  • Lamp Voltage, UL: Max. 400 V AC/DC
  • Lamp Current Frequency Range:DC to 1.2 kHz
  • Lamp Current, IL: Max. 1.0 A continuous operation
  • Ignition Condition: Controlled by electronic ballast
  • Lamp Holder: Integrated high voltage lamp holder for P32-d D2 base
  • Operating Temperature Range: – 40 °C to + 125 °C, case temperature (-55°C to + 140°C on request
  • Mechanical, Dimensions: Sealed starter module 44.6mm (1.76in) (L) x 42.2mm (1.66in) (W) x 28.5mm (1.122in) (H), excluding J1
  • Weight: 70.5 g / (2.48 oz)

Contact us for special OEM pricing.
