Electronic Starter IG035S05


SKU: IG035S05 Categories: , Tag:


Electronic starter to start discharge lamps General Electric XENSATION D2x, Osram D2x, HTI S 35/xx, Philips D2x, MPXL-DL35, XL-2, BL-2, -RP50, -DUV, intended for our electronic power supplies EB050Sxxx, SYS035xx, SYS050xx.

Other lamp types and Hid ballasts on request.

Electronic Starter Technical Specifications*:
  • Starter Type: Series pulse starter with asymmetrical HV output
  • HV Output Voltage, UIG: Nom. 24 kV, ≤ 20 pF load
  • Lamp Voltage, UL: Max. 400 V AC/DC
  • Lamp Current Frequency Range: DC to 1.2 kHz
  • Lamp Current, IL: Max. 0.8 A continuous operation
  • Ignition Condition: Controlled by an electronic ballast
  • Lamp Holder: Integrated high voltage lamp holder for P32-d D2 base

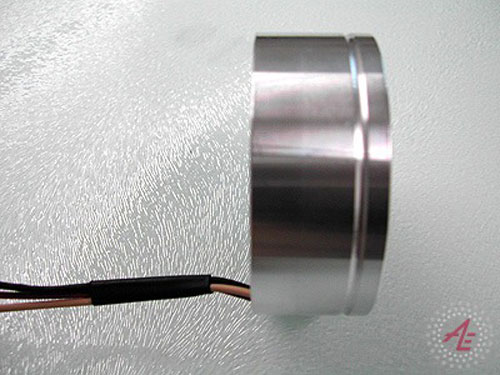

  • Mechanical, Dimensions: Cylindrical and sealed starter module 64 mm (2.5in) diameter x 27mm (1 in) height
  • Weight:148 g / 5.2 oz
