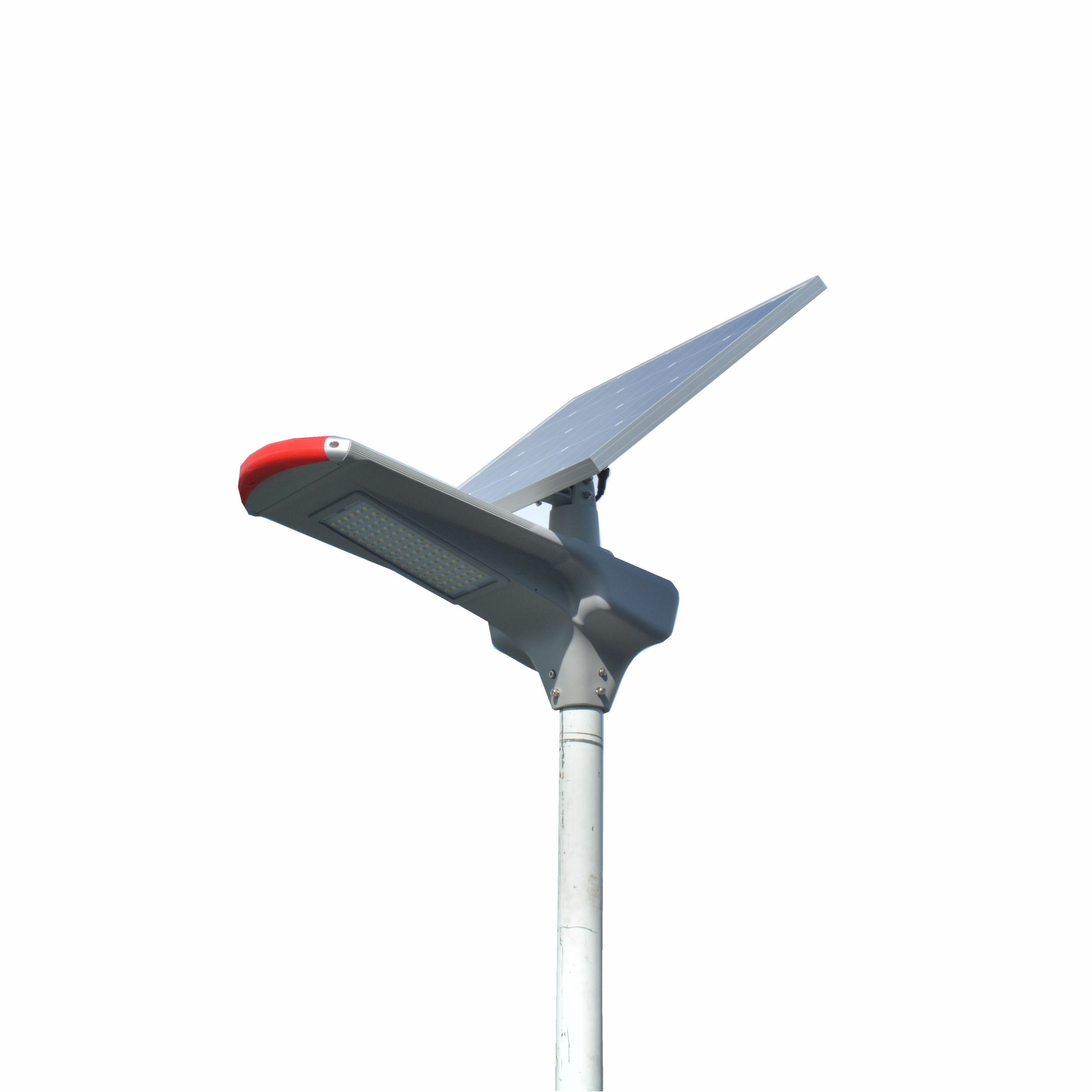

70W Solar Light

Built for a range of applications the INB-G01-70W series is the world’s most advanced LED solar lighting system. This clever design and attractive, robust construction incorporates the latest solar power technology, providing many years of outstanding performance and reliability. Other solar lights house lead acid battery packs underground or on the pole which are heavy and cumbersome to handle in both installation and replacement, they are also vulnerable to water intrusion and theft. The INB-G01-70W uses an innovative patented “All-In-One” system that integrates an efficient solar panel, compact Lithium-ion (LiFeP04) battery and a smart power management system in a compact easy to install light fixture.

The All-In-One design eliminates the need for external wiring to remote battery packs and does not require an electrician to set up. All wiring is interconnected to the high output LED luminaire directly to the power management system without requiring tools. The INB-G01-70W is designed to withstand the harshest and most extreme environments from blistering heat to driving rain, hail and sub-zero temperatures.


SKU: 70840-INB-G01-70W Category: Tag:

The INB-G01-70W solar light has a built-in motion detection feature that automatically regulates the LED output from full brightness to a lower level depending upon the detection of movement around the light. The power management system continuously monitors and automatically regulates the light output taking into account various battery conditions. The light can also be controlled by Remote Control making it easier to adjust for the changing seasons.

The INB-G01-70W solar street light uses SMD3535 highly acclaimed LEDs as part of its design.

Life expectancy for the LEDs is more than 50,000 hours providing years of maintenance & trouble-free operation.

70w Solar Light Specifications:

  • Lamp Power: 70W
  • Solar Panel: 110W/18V (Rotatable for maximum sun exposure)
  • Battery: Lithium 586.1 WH
  • LED Chip: SMD3535
  • Luminous flux: 8500-9500 lm
  • Charge time (full sunlight): 6-8 hrs
  • Color temp: 3000-6500K
  • CRI: ≥70Ra
  • Light control voltage: 5V
  • Light distribution: Batwing
  • Lighting time (fully charged): >36+ H
  • Working temperature: -20°C ~ +60°C
  • Lifetime: ≥50,000hours
  • Material: High-quality aluminum alloy, die-cast aluminum
  • Pole top diameter: 76mm (2.99in)
  • Spacing: 30-35 meters (98.5 – 115ft)
  • Mounting Height: 8 – 10 meters (26 – 33ft)
  • Charge temp: 0°C to 55°C
  • Discharge temp: -20°C – 60°C
  • Overall light dimensions: Light Body and 740mm (29in) length X 340mm (13.4in) wide X 335mm (13.2in)
  • Solar Panel Overall Dimensions: 1035mm (40.75in X 670mm (26.4in) X 30mm (1.18in)

Solar Light Installation:

Solar lighting is one of the easiest and least expensive ways to save energy without lowering performance. AE LIGHT offers Solar lighting, designed to produce high levels of illumination at relative low installation costs.

Installing outdoor solar lights eliminates the high cost of bringing power to an area without electricity. Meanwhile, the upfront cost of a Solar Light fixture is more than a standard fixture because it is important to compare not only the upfront costs but the long term savings in energy, maintenance, replacement, and electrician costs.  For Instance, Solar Lighting System is installed virtually and the cost is nothing for the remainder of the light life.

At AE LIGHT we are optimistic about the future for solar energy. Our endeavors are directed towards harnessing the sun’s clean and renewable energy to power our LED Solar Lights.

The sun is a gigantic fusion reactor that converts millions of tons of matter into energy every passing second. This energy reaches the earth in the form of visible light and infrared radiation.

We are continually advancing our LED Solar Lighting technology and offering a host of Solar lighting solutions for, Outdoor, courtyard, garden, walkway, Street, & Emergency solar lighting.

Our energy-saving solar lights are great for illuminating large & small areas with bright and shadow-free light with extended run time and maintenance-free operations.

Call now to see how we can help you save on your electric bill with our stand-alone LED solar lighting solutions.

Lighting Mode: (Mode can be customized)

100% bright lighting infrared motion sensor+60% lighting before midnight and 30% lighting till dawn (energy saving mode to prolong overcast backup days )

Additional information

Weight 65 lbs
Dimensions 32 × 14 × 16 in
