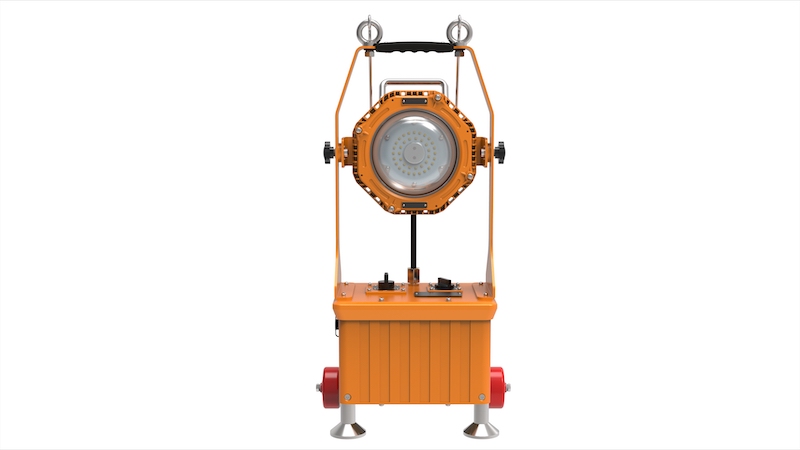

LED Portable Explosion Proof Light SPOT/FLOOD



LED Portable Explosion Proof Lights with Battery Details:

These LED Portable Explosion Proof Lights are ideal for remote lighting in hazardous areas such as roadway chemical spills, accident scenes, and explosive industrial environments. These lights come both Flood and Spot beam. The lights are waterproof and durable. The LEDs are powered by a self-contained battery, that is charged by a built in100/240VAC charger. Rated power is 60W in high and 15W in low.

The light head rotates 360°, with 135° tilt.

The wheels on the bottom of the battery housing make moving the light easy.


LED Portable Explosion Proof Lights

Light Specifications:

  • Voltage: AC 100-277V
  • Battery: B24V-24V DC
  • Charge Voltage: 100/240VAC
  • Working Voltage: 24.5VDC
  • Rated Capacity: 4.0AhWorking Temperature: -20˚C~+55˚C
  • Working Humidity: 20~98%
  • Luminous Flux (lm): 1740 -7560
  • Lighting Area: 1100m˚
  • Battery type: Lead-acid batteries
  • Continuous Runtime: >10 hours (high output, 2 batteries)
  • Recharge time: 12-14 hr with over charge protection.
  • Dimensions (L X W X H): 14 X 28 X 14″
  • Weight: 18kg (Fitting only)
  • Ex Mark: Gas: Ex11 2G Ex d e 11C T5 Gb IP54
  • Certificate: ATEX Certification No.: ECM 17 ATEX-B TD45 CE IECEx Certificate No: IECX CQM 16.0005X
  • Executive Standard: EN 60079-0 IEC60079-0:2011, EN 60079-1 IEC 60079-1:2007-904, EN 60079-7, IEC 60079-7:2006-07
  • Ratings: Class 1, Division 2 (Zone 2) Groups A & B
  • Classification: Group 11 Zone 1 & 21 and 2 & 22

Hazardous Location Lights: This category features, LED  Portable Explosion Proof Lights are battery operated and other intrinsically safe lighting products. These lights are used in areas where petrochemical or dust particles have the potential to exist and the possibility of ignition is possible. Explosion-proof lighting is rated Class 1, Division 2 as specified by UL standards. These areas include offshore lights, rig lights, spray booths, cleaning vessels, fuel cells, plant turn around, marine work areas, grain storage, dust, or munitions.

Additional information

Weight 45 lbs
Dimensions 14 × 28 × 14 in
