Ballast: Metal Halide 15/20/25W 12V DC

Request Consultation

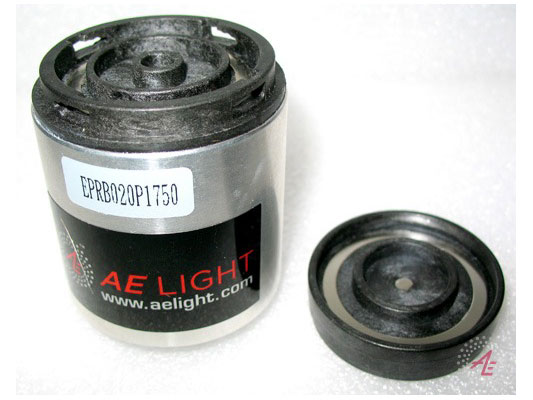

Electronic ballast with an integrated starter and lamp socket for Metal Halide 15W DC lamp (MH15TLDC).
Intended for battery operated portable lighting applications.
SKU: Ballast: Metal Halide 15/20/25W 12V DC-1 Categories: , , ,

Description

Ballast Metal Halide 15-20-25W Specifications:

  • Pin leads
  • Input Voltage Range: DC9.6 ~ 17V Intended for battery supply
  • Typical Operating Voltage: DC12.8V
  • Typical Input current: 1.3A± 0.1A
  • Output Power: 13.5W± 1W (20W & 25W also available)
  • Output Voltage: DC65V± 10V
  • Efficiency: ≥85%
  • Ignition Pulse: Peak V. 15kV
  • Cooling: Natural air, additional cooling may be required depending on final application
  • Input Protection: Under voltage protection at 8V±1V / Overvoltage protection at 22V±1V / Reverse Polarity
  • Output Protection: Short circuit protection between 2 outputs / Open circuit protection between 2 outputs
  • Operating Temperature: -20℃~+ 85℃
  • Storage Temperature: -40℃~+105℃

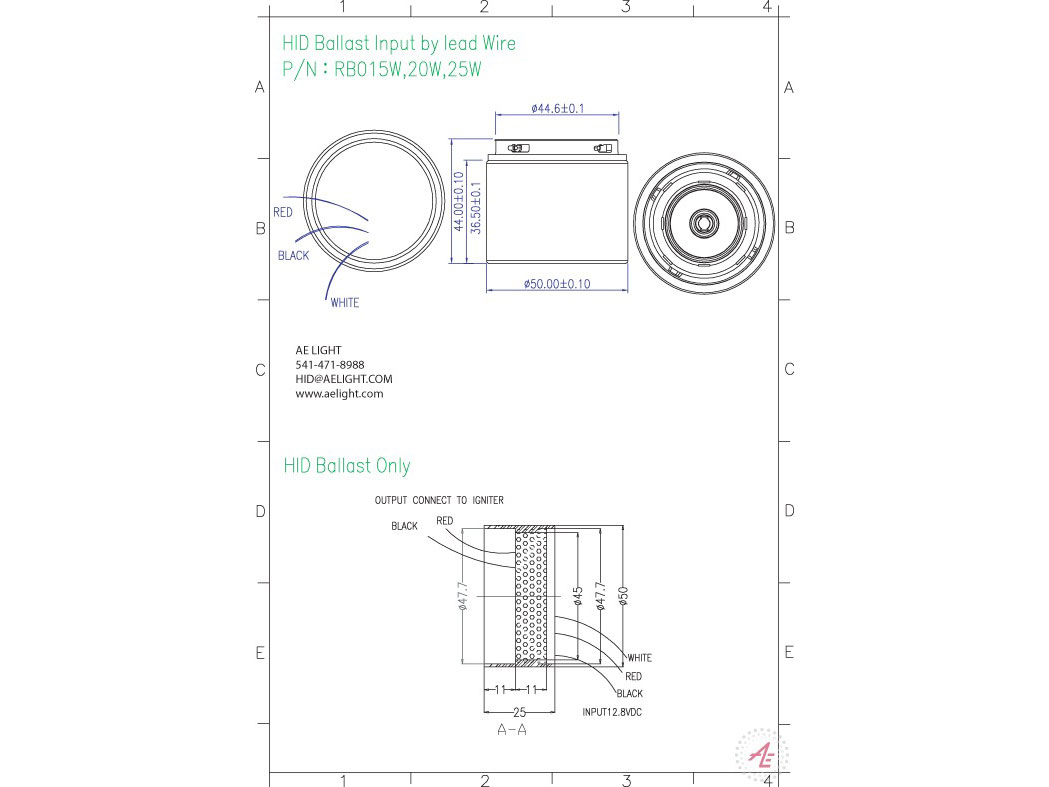

  • Mechanical Dimensions: Diameter – Ø50.00±0.10mm / Height to top of socket – 44.00±0.10mm | Socket diameter – Ø44.6±0.1mm
  • Lamp Type: Metal Halide 15W MH15TLDC
  • Options: Separate ballast/starter / Wire input leads / wire leads for lamp
  • This ballast requires battery contact plate #EB/RBCC
For OEM pricing please contact AE LIGHT
Please Contact Us for information about purchasing this product
