Ballast: Metal Halide 15/20/25W 12V DC

Request Consultation

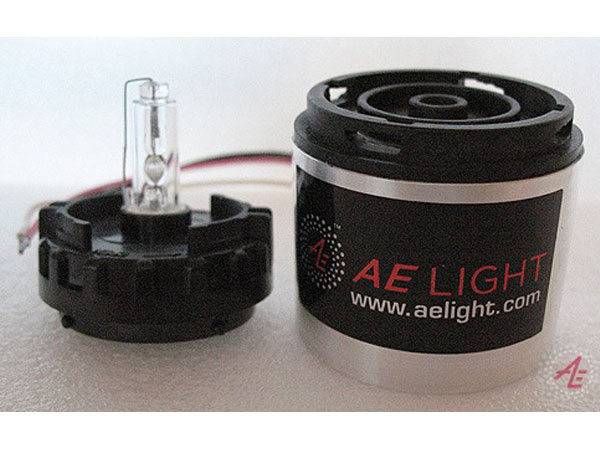

Electronic ballast with integrated starter and lamp socket for Metal Halide 20W DC lamp (MH20TLDC).
Intended for battery operated portable lighting applications.
Wire leads
Input Voltage Range: DC9.6 ~ 17V Intended for battery supply
SKU: Ballast: Metal Halide 15/20/25W 12V DC Category:

Description

Specifications:

  • Typical Operating Voltage: DC9.6V~17V
  • Typical Input current: 1.6A±0.1A
  • Output Power: 17.5W±1W (20W & 25W also available)
  • Output Voltage: DC65V± 10V
  • Efficiency: ≥85%
  • Ignition Pulse: Peak V. 15kV
  • Cooling: Natural air, additional cooling may be required depending on final application
  • Input Protection: Under voltage protection at 8V±1V / Over voltage protection at 22V±1V / Reverse Polarity
  • Output Protection: Short circuit protection between 2 outputs / Open circuit protection between 2 outputs
  • Operating Temperature: -20℃~+ 85℃
  • Storage Temperature: -40℃~+105℃
  • Mechanical Dimensions: Diameter – Ø50.00±0.10mm / Height to top of socket – 44.00±0.10mm | Socket diameter – Ø44.6±0.1mm
  • Lamp Type: Metal Halide 20W MH20TLDC
  • Options: Separate ballast/starter / Pin Input leads / wire leads for lamp
  • For OEM pricing please contact AE LIGHT
