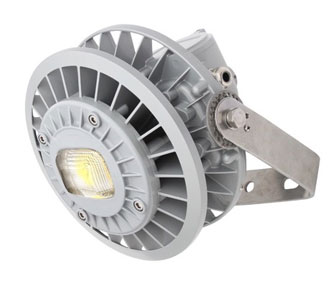

Explosion Proof LED Light Head 60W 100˚

LED Explosion Proof Light w/Bracket, and Taiwan Meanwell power supply.

Dimming: 1-10VDC available. Mounting height 5~8m. Gas explosive

environment: Group llA, llB, llC; Zone 1 & 2; Zone 21 & 22.

Ex marking: Ex db e llC T4/T5/T6 Gb, Ex tb lllC T130°C/T95°C/T80°C, Db. IP66


SKU: 70880 - AEBC9306S-L60-100 Category:

60W Explosion Proof light head. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and areas with dust. This LED light produces 6,700 lumens using only 60W, (additional wattages available), or the equivalent of 150W Metal Halide with more than 60% savings in electricity. Multiple input voltages make this explosion proof LED light versatile for many applications such as; oilfield, chemical industry, offshore drilling platform, steel industry & petroleum. The LED’s are American made Cree with a Meanwell LED Driver from Taiwan.

The explosion-proof LED light head has an adjustable and locking device on the bracket so it can be adjusted and fixed to your working area, which is especially helpful when used in a harsh vibration location. The aluminum body is powder-coated for anti-corrosion, which is dust and waterproof. Flameproof protection makes it safe for use in all kinds of hazardous explosive environments. This light can mount to a variety of mounts including, portable tripods, ceiling, wall, and bracket.

BC9306S-L60- 100˚ standard, additional models available call for details.

60W Explosion Proof light head Specifications:


Wattage 60W – 6900 lm., Mounting Height – 5-8m

Input Voltage range (v) – 90~264VAC; 18~43VAC; 18~55VDC

Frequency – 50Hz / 60Hz

CRI (Ra) – 70 (80 optional)

Lifetime (h) – 50,000

CCT – 5000K (3000K / 4000K optional)

Cable entry – M20x1.5, G3/4″, NT 1/2″

Terminals – Multi-core: 2.5mm2 – Single-core: 4mm2

Dimensions – 245 X 260 X 270mm

Net weight (kg) – 4.9

Ex marking: Ex db e llC T4/T5/T6 Gb – Ex tb lllC T130˚C/T95˚C/T80˚C Db, IP66

Gas explosive environment: Group llA, llB, llC

Zone 1, Zone 2: Zone 21, Zone 22

Hazardous Location Lights: This category features HID & LED Drop Lights, Hand Lights, Portable Explosion Proof Lights, and other intrinsically safe lighting products. These lights are used in areas where petrochemical or dust particles have the potential to exist and the possibility of ignition is possible. Explosion proof lighting is rated Class 1, Division 1/2 or Class 2, Division 1/2 as specified by UL standards. These areas include offshore lights, rig lights, spray booths, cleaning vessels, fuel cells, plant turn around, marine work areas, grain storage, dust, or munitions.

Additional information

Weight 11 lbs
Dimensions 9.65 × 10.25 × 10.65 in
