Gas: Groups IIA (Group D), IIB (Group C), Zone 1 (Class 1, Division 1), Zone 2 (Class 1, Division 2),
Dust: Zone 21 (Group E Only). Where a combustible dust cloud is likely to occur during normal operation in sufficient quantity capable of producing an explosive concentration of combustible or ignitable dust in mixture with air.
Dust: Zone 22 (Group E Only). Where combustible dust clouds may occur infrequently, and persist for only a short time, or in which accumulation of layers of combustible dust may be present under abnormal conditions and give rise to ignitable mixtures of dust in air. Where following an abnormal condition, the removal of dust accumulstion can not be guaranteed then the area shall be classified as zone 21).

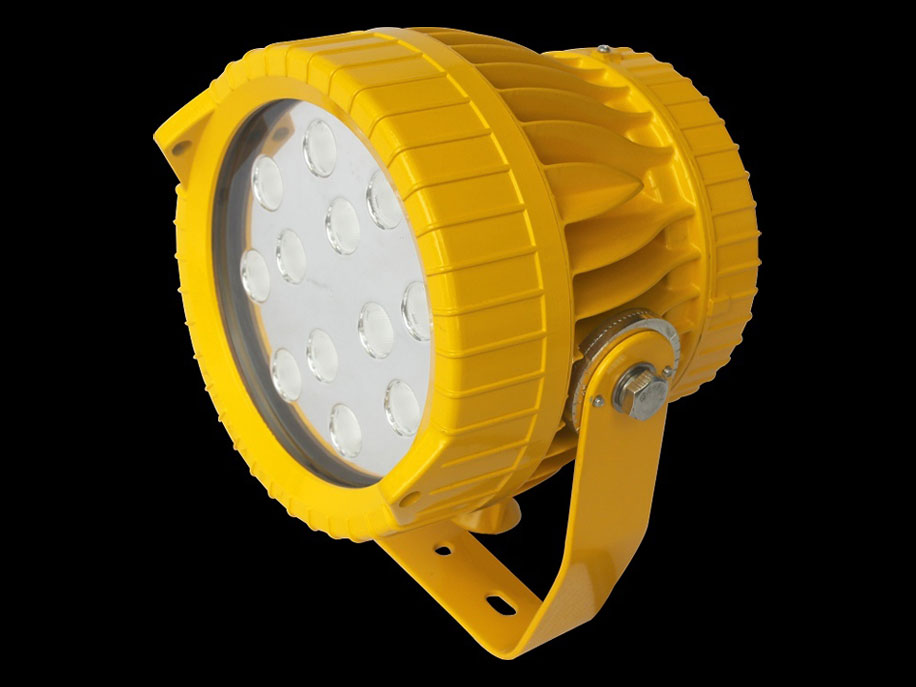

Specifications: (Call or email for light distribution and additional technical data)
- Input Voltage: 90~264VAC / 127~370VDC (Automatic sensing)
- Frequency: 50Hz / 60Hz
- Anti Corrosion: WF2
- Insulation Grade: I
- Spacing height ratio: 4.5
- Dimensions: 190.5 X 165.1 X 63.5mm /7.5 X 6.5 X 2.5″ (Bracket)
- Net Weight: 6.5Kg / 14.33Lb.
- IP66 (Completely protected against dust, protected against powerful jets of water from all directions)
- CSA/NEMA Enclosure: 4, 4X
- Operating Temp: -40° C ~ +50°C
- Temp Class: T6
Ex Code: Ex d II C T6 Gb
Standard: GB3836.1, GB3836.2, IEC60079-1:2007, MOD
Hazardous Location Lights: This category features HID & LED Drop Lights, Hand Lights, Portable Explosion Proof Lights and other intrinsically safe lighting products. These lights are used in areas where petrochemical or dust particles have the potential to exist and the possibility of ignition is possible. Explosion proof lighting is rated Class 1, Division 1/2 or Class 2, Division 1/2 as specified by UL standards. These areas include offshore lights, rig lights, spray booths, cleaning vessels, fuel cells, plant turn around, marine work areas, grain storage, dust, or munitions.
The Xenide AEX20-EP HID searchlight is rated for Class 1, Division 1&2 applications. and is a powerful hid spotlight that can be used in a variety of industrial applications such as inspection lighting, industrial UV inspection light, and leak detection.
