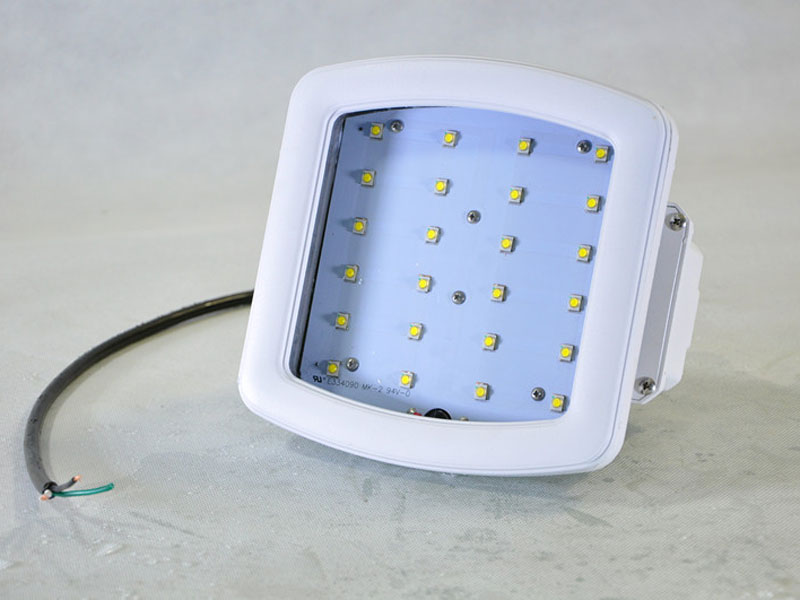

20W LED Light

20W LED light head. This LED light head produces 3,720 lumens or the equivalent of 150W HPS. Multiple input voltages (90 – 305VAC) makes this LED light versatile for many applications. The LED’s are American made BridgeLux which will save 60% compared to equivalent Metal Halide or HPS of equal output. The LED Driver is Meanwell of Taiwan with a power factor of >0.98 for continuous stable performance.

The aluminum body is powder coated for anti corrosion, and is dust and water proof, suitable for use in wet or dust environments.

The light is designed to be mounted on a variety of mounting systems including wall, pole, ceiling, or bracket.

120° X 120° beam assures even illumination. (Optional 60° X 30° Available)

SKU: AECES-J40-S Category:

Optional mounts include: Pendant, wall, surface, tripod.

  • Technical specifications:
  • Material: Die Cast Aluminum
  • Light Color Options: Cool White / Warm White
  • Fixture Color Options: Grey (Standard) Yellow (Optional) (Other colors available for additional cost)
  • Lens: Super Clear Tempered Glass
  • IP68
  • Weight: 8.8 Lb
  • Size: 300*300*175mm
  • Beam: 60° X 30° / 120° X 120°
  • LED: 36 pcs Bridgelux
  • Lumens: 3720
  • Input Voltage: 90 -305VAC
  • Power Factor: ~0.98
  • Total Harmonic Distortions: <10%
  • Efficacy: 90lm up to 150lm @ 350 Ma (per watt)
  • Surge protection: IEC/EN 61000-4-5
  • Operating temp: -30°C to +50°C
  • Rated Life: 100,000+ hrs.
  • Test Standard: EN 60079-0/2009; EN 60079-7/2007; EN 60079-31/2009
  • cUL/UL / CE W/CNAS Listed: 100-240VAC / 277VAC Suitable for wet locations
  • RoHS Compliant
  • 5 year warranty



Additional information

Weight 8.8 lbs
Dimensions 1.3 × 1.3 × 6.89 in
