Ballast: Metal Halide 35/50W 22-33VDC

$120.00

-

NOTE: EB050S22-P BALLAST 24VDC WITH IG035S05 STARTER ON SALE PLEASE INQUIRE

Direct drive for Philips XenStart or Osram D1S, D1R, XL-1, BL-1

Philips – D2S, MPXL-DL35 /DL50, RP50/xx, Osram – D2S, HTI S 35/12, GE-D2S Xensation

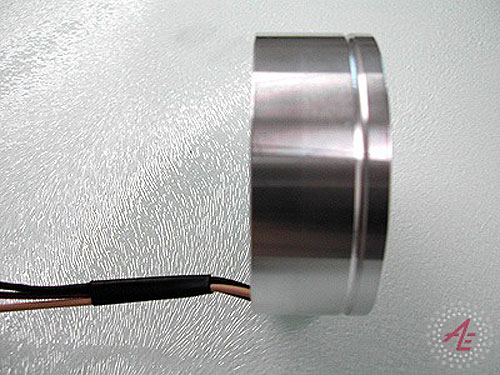

NOTE: The picture shows EB050S11 with input wires out the back. Starter wires not shown.

Contact Us For Special Pricing

SKU: EB050xxx Category:

Description

Following model variants are available:

EB050S22-P ON SALE Includes IG035S05 Starter CLOSEOUT

  • EB050S11, Electronic ballast for 9 – 18V DC input (S11 for D1S) (S12 for D2x)
  • EB050S21, Electronic ballast for 18 – 33V DC input (S21 for D1S) (S22 for D2x)
  • EB050S22-P, Electronic ballast for 18 – 33V DC input (S21 for D1S) (S22 for D2x)
  • Technical Specification, EB050S11/12:
  • Input Voltage UE: Nom. 10 – 18V DC
  • Technical Specification, EB050S22-P / EB050S21/22:
  • Input Voltage UE: Nom. 22 – 33VDC
  • Steady State Lamp Power PL: 35 W / 50W depending on supply input J1, pin C
  • Lamp Output J2: S11/S21:
  • AS-GT15HD-130 shielded, 120mm wire length
  • S12/S22:
  • Open leads, AWG20 (BL)

Mechanical, Dimensions: Ballast module with D1 connector and input leads -TBD, Dimensions 65 mm dia. x 25 mm (h), excluding optional heat sink. Heat sink available for applications requiring additional heat dissipation.
Weight: 175 g (6.2 oz) excluding heat sink.

Possible applications include: Aviation, Marine, Portable, Security, Architectural, Fiber optics, Emergency back up lighting, Dive lights

* At 23° C +/- 5° C during normal operation unless otherwise specified. Technical modifications subject to change without notice

OEM ONLY

HID lights are a quality and efficient way to provide light in a variety of industries and environments, providing a powerful, portable searchlight. With its high-intensity discharge, these lamps offer superior lighting and meet the highest industry standards.

Ballasts are part of what make these flashlights so effective. When the right electronic ballast is used, you can create a cost-effective lighting option with energy efficiency and advanced control over how much light is produced.

Electronic ballasts put out multiple frequencies without needing the input voltage altered. This method allows the ballast to function without flickering or buzzing, whereas magnetic ballasts are typically the reason for that buzzing and clicking. If your HID light is running with a magnetic ballast, you could have the noise, but also a less efficient flashlight.

There are two types of starting methods for HID electronic ballasts. The first is a probe start, which can be harder on an HID light. The electrons jump across the arc tube, which is held between two operating electrodes. Once the lamp is started, then the starting probe electrode is detached and removed from being part of the circuit. While this can be an effective starting method, the flashlight can take longer to warm up and reach the full brightness. The re-strike period can also be longer.

Pulse start ballasts, on the other hand, do not use a starting probe, but a high voltage igniter working alongside the ballast. Using this method, the life of your light can be extended and the lumens do not depreciate as quickly.

To determine the right ballast for you, it is important to ask yourself the following questions:

  • What type of light are you powering?
  • Is there a size requirement/constraint for the light?

HID electronic ballasts are made for metal halide, mercury, metal vapor, and xenon short arc lamps. They can also be used with different voltage and wattage levels based on your application.

We feature Auerswald Systems, making our ballasts some of the lightest and most efficient HID electronic ballasts available. AE Light ballasts are ideal in a variety of applications, including portable lighting, medical, automotive, scientific, and industrial. With a state-of-the-art electronics design, our power products are perfect for lighting options that demand performance and reliability.

Additionally, we can help you design an HID electronic ballast that addresses your unique needs. If you are looking for a custom design, please contact us.
